Ultra silent! Reduce 3-8 decibels than open type generator!
1.
Powerful Energy, Fuel Saving, Easy Operation & Maintenance
2.
Adopt sound absorption design to be ultra silence.
3.
Pure copper motor longer its using life.
4.
Variable configurations are available according to clients' requirement.
5.
Universal accessories, Reasonable price, Convenient replacement.
6.
High-tech molding powder shell with high temperature & corrosion resistance.
7.
Original Factory Sale with more stable production, quality guaranteed and more
competitive price
without trade company.

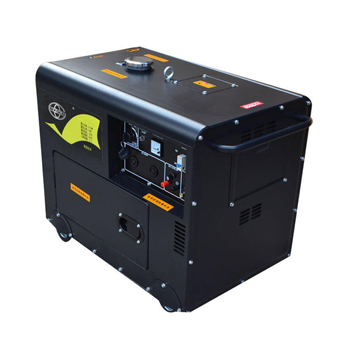

Model
|
GLD5500ES
|
GENERATOR
|
Frequency (HZ)
|
50HZ
|
60HZ
|
Max.output (KW)
|
4.6
|
5.0
|
Rated output(KW)
|
4.2
|
4.6
|
Rated AC Voltage(V)
|
120,220,230,120/240,220/380
|
Power Factor
|
cosφ=1
|
DC output (V)
|
12V/8.3A
|
Phase
|
Single Phase or Three phase
|
Alternator Type
|
Self-excited,2-pole, Single phase alternator
|
Starting System
|
Electric
|
Noise Level (Dba/7m)
|
68-72 Db
|
Fuel Tank Capacity (L)
|
15
|
Continuous Running Time (hr)
|
10.2
|
9
|
ENGINE
|
Engine Model
|
GLD186FE
|
Engine Type
|
Single-cylinder, vertical,4-stroke air-cooled diesel engine, Direct
Injection
|
Bore 〜 Stroke (mm)
|
86〜72
|
Displacement (cc)
|
406
|
Fuel
|
0#(summer) or -10#(winter) light diesel oil,-35# (cold)
|
Rated output power [kw/rpm]
|
5.7/3000
|
6.3/3600
|
Lubrication Oil Volume (L)
|
1.65
|
Compression ratio
|
19:1
|
STANDARD FEATURES
|
Voltmeter
|
YES
|
AC Output Socket
|
2
|
AC Circuit Breaker
|
YES
|
Oil warning Light
|
YES
|
Oil Alert
|
YES
|
Wheel
|
4
|
OPTIONAL FEATURES
|
Dc circuit breaker
|
OPTIONAL
|
Running time meter
|
OPTIONAL
|
Big wheel
|
OPTIONAL
|
Three phase voltage
|
OPTIONAL
|
Current meter
|
OPTIONAL
|
ATS
|
OPTIONAL
|
Remote control
|
OPTIONAL
|
DIMENSIONS
|
Dimension(L*W*H)(mm)
|
935*525*680
|
Net Weight(kg)
|
155
|
|
